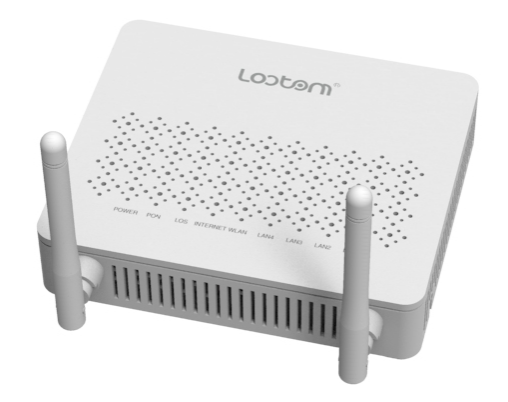

GPON ONU 4FE+WIFI GDONU300-4FW

GDONU300-4FW is a GPON ONU device is designed by Lootom based on mixing and multi-service network is also an GPON ...

Current position:HOME > PON

GPON ONU 4FE+WIFI GDONU300-4FW

Overview        GDONU300-4FW is a GPON ONU device is designed by Lootom based on mixing and multi-service network is also an GPON SFU terminal applied in FTTH/O solution with four 10/100BASE-T ports. It can provide users with high-speed data service and high-quality video service. This series of products follow the international standard ITU-T G.984.x. It possesses good interoperability and maneuverability and it can realize interconnection with the mainstream OLT equipment manufacturers. Features         It supports 1.25Gbps up and 2.5Gbps down symmetrical PON transmission rate and it can realize the high split ratio of 1:128 and up the coverage radius to 20 km. and it can truly embody high bandwidth, high user access and long distance access ability of the PON communication
        It follows the ITU-T G.984.x GPON standard, and it supports remote management, configuration and maintenance through work with OLT of other manufacturers
        Specifically developed VLAN, spanning tree, port isolation, ACL, QOS, security filtration, storm control technology so that the ONU products have the security of business carrying capacity.
        Supporting the DBA and Rate - Limit function, advanced dynamic bandwidth allocation mechanism and function of precise bandwidth limitations, that all users can share 2.5 Gbps bandwidth resources more reasonably.
        Supporting QOS function, realizing the reliable quality of service, and ensuring that the network service priority and service quality of different business.
        Support Telnet remote maintenance and configuration
        Support software online upgrade. Technical Specifications              ONU?Basic?Parameter:

Item

GDONU300-4FW

User Networks ports

4 fixed 10/100 MBASE-T self-adaptive RJ45 interface

PON ports

Uplink  transmission rate:1.25GBPS

Downlink l transmission rate:2.5GBPS

Network coverage radius : 20 km

Optical interface typeSC/PC

Optical receiver with high sensitivity : ≥-28dBm

Luminous power1~4dBm

Dimension

Dimension: 173 mm(W) x 117 mm(D) x 33 mm(H)

Weight: <0.5kg

Installation plug and play

Surroundings parameter

operating temperature050 10%-85% (no condensation)

storage temperature-4080  5%-95%  (no condensation)

Power supply

DC12V/1A adapter type power supplying

Power consumption

<5W

Body case

Plastic case


             WIFI?Parameter:

WIFI Parameter

Frequency range

2.4~2.4835GHz

Transmission rate

11n270/243/216/162/108/81/54/27Mbps

135/121.5/108/81/54/40.5/27/13.5Mbps

130/117/104/78/52/39/26/13Mbps

65/58.5/52/39/26/19.5/13/6.5Mbps

135/121.5/108/81/54/40.5/27/13.5Mbps

130/117/104/78/52/39/26/13Mbps

65/58.5/52/39/26/19.5/13/6.5Mbps

IEEE802.11g

54/48/36/24/18/12/9/6(self-adaption)

IEEE 802.11b 11/5.5/2/1M(self-adaption)

Working channel amount

13

Screen show

DSSS

Data modulation

DBPSKDQPSKCCK and OFDM(BPSK/QPSK/16-QAM/64-QAM)

Sensitivity@PER

135M:-65dBm@10% PER

54M:-70dBm@10% PER

11M:-85dBm@8% PER

1M:-91dBm@8% PER

Transmission distance

Indoor:<120m outdoor:<360m

Outdoor:<360m(depends on the environment)

RF power supply

20dBm EIRP(11b)

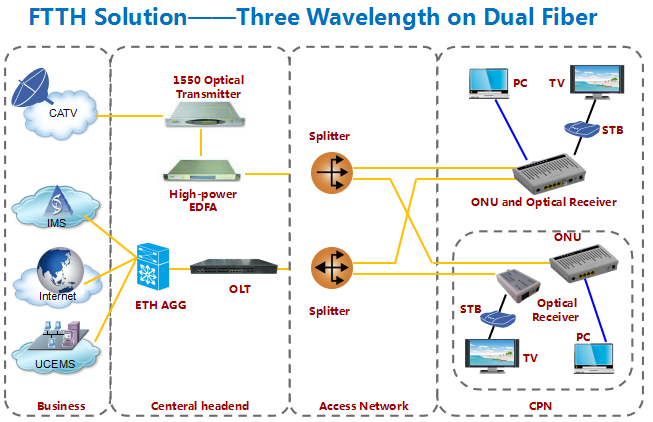

Network diagram
